Documentation / Gemini 330 series /
Gemini 335Lg host platform adapted list

Gemini 335Lg host platform adapted list

The Gemini 335Lg is the latest GMSL stereo camera launched by ORBBEC. Equipped with ADI’s serialization chip, it can output variable data streams in different formats at high speed up to 6Gbps. To preview these data streams and apply them in business development, the camera should be connected to a host that supports receiving MIPI streams, such as the NVIDIA Jetson ecosystem. The Gemini 335Lg has been officially adapted by ORBBEC to work with NVIDIA Jetson AGX Orin and AGX Xavier development kits, as well as other full systems based on NVIDIA Jerson SOM.

To support NVIDIA Jetson SOM, ORBBEC provides precompiled GMSL drivers for different platforms and has pre-tested performance through multiple camera links. Three types of solutions are supported: development kits, full systems, and standalone components.

Category Content Note
Develop Kit NVIDIA Jetson AGX Orin DK

NVIDIA Jetson AGX Xavier DK

AGX Orin for Jetpack 6.0

AGX Xavier for Jetpack 5.0

Full System ADVANTECH MIC-733-AO Jetpack 6.0
Carrier Board + SOM Connect Tech Inc. AGX202+AGX Orin SOM

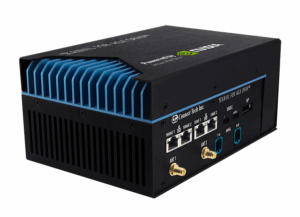

Connect Tech Inc. AGX203+AGX Orin SOM

Jetpack 6.0



1. Developer Kit Solution

1.1 AGX Orin Developer Kit

The AGX Orin developer kit is the latest flagship product in the NVIDIA Jetson series, with a computing power of 275Tps, 32GB or 64GB of RAM, and a 120-pin 16-lane MIPI connector, allowing up to 16 MIPI/GMSL cameras to be connected. To connect the Gemini 335Lg, a compatible deserializer board is required. ORBBEC has verified the following deserializer boards. Detailed information is shown below:

Components  – 1x AGX Orin Developer Kit
– 1x Gemini 335Lg- 1x Deserializer Board
Supported Deserializer Board Models – xcDeserializer 2.0

JCB002 (Connect tech inc.) *

Connection Diagram
RAM 64GB(P3730-0000)*

32GB(P3730-0010)*

Jetpack Version 6.0
Linux Version Ubuntu 22.04
ROS Support ROS2 humble
Features – Issac ROS

– Multi-device sync

Max Access Number of Gemini 335Lg Cameras   8
Precompiled Driver Path orbbec repositories · GitHub

1.2 AGX Xavier Developer Kit

The AGX Xavier, released in September 2018, is an AI computing platform with 32Tops of computing power and 32GB of RAM. It also supports up to 16-lane MIPI camera connections. The deserializer boards and Developer Kit details verified by ORBBEC are as follows:

Components –   1x AGX Xavier Developer Kit
–   1x Gemini 335Lg       –   1x Deserializer Board
Supported Deserializer Board Models –   xcDeserializer 2.0
Connection Diagram
RAM 32GB(P2888-0000)*
Jetpack Version 5.0.2
Linux Version Ubuntu 20.04
ROS Support ROS1 & ROS2
Features –  Multi-device sync
Max Access Number of Gemini 335Lg Cameras   4



2. Full System Solution

2.1 ADVANTECH Full System

The Gemini 335Lg is also compatible with the MIC-733-AO full system, an advanced intelligent device from Advantech. Unlike the Developer Kit, the full system comes with a built-in deserializer board, which allows direct GMSL camera connection. The compatibility details are as follows:

Components –   1x MIC-733-AO
–   1x Gemini 335Lg
Supported Deserializer Board Models –   MIC-FC-4G

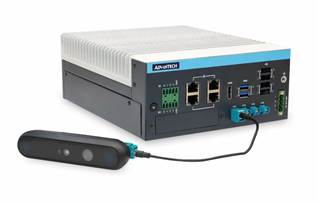

Connection Diagram
RAM 64GB
Jetpack Version 6.0
Linux Version Ubuntu 22.04
ROS Support Yes
Features –  Multi-device sync *

–  Issac ROS

Max Access Number of Gemini 335Lg Cameras 4



3. Component Solution

3.1 CTI component solution

NVIDIA’s Jetson can also exist as an SOM (System on Module), but it requires a compatible carrier board. A Developer Kit is essentially a combination of an SOM and a carrier board. ORBBEC has provided targeted adaptation solutions for such cases, with the following details:

Components –   1x AGX202 + AGX Orin SOM + JCB002
–   1x Gemini 335Lg
Supported Deserializer Board Models –   JCB002

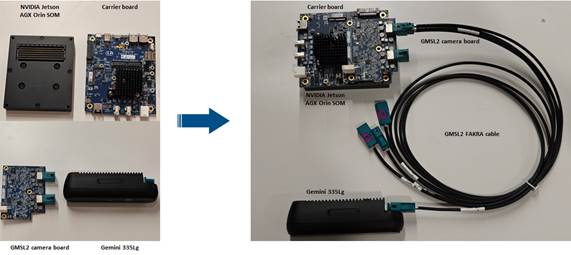

Connection Diagram
RAM 64GB(P3730-0000)*

32GB(P3730-0010)*

Jetpack Version 6.0
Linux Version Ubuntu 22.04
ROS Support Yes
Features –   Multi-device sync *
Max Access Number of Gemini 335Lg Cameras 8



Notes:

  1. The Advantech MIC-733-AO currently does not support multi-device sync, which will be enabled in future software updates.
  2. The hardware numbers for AGX Orin and AGX Xavier may change slightly due to improvements by NVIDIA, but the first five digits will remain unchanged. Be sure to purchase official kits. Third-party kits require self-compiled drivers.
  3. There is no essential difference between different memory versions of the same kit, and drivers and system software are interchangeable.
