Compare Stereo Vision Cameras
Compare and choose the stereo vision camera that best fits your needs.
| Feature | Gemini 2 | Gemini 335/336 | Gemini 2 L | Gemini 335L/336L | Gemini 335Lg | Gemini 335Le | Gemini 435Le |
|---|---|---|---|---|---|---|---|

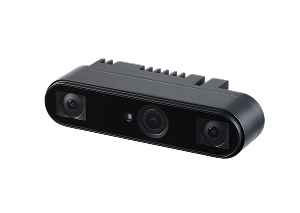

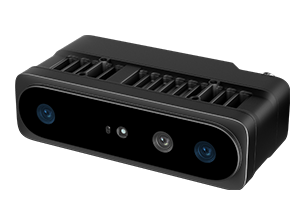

| Picture |  |  |  |  |  |  |  |
| Use Environment | Indoor Environments with No Sunlight | Indoor & Outdoor | Indoor Environments with No Sunlight | Indoor & Outdoor | Indoor & Outdoor | Indoor & Outdoor | Indoor & Outdoor |
| Technology | Acitve Stereo IR | Active & Passive Stereo | Acitve Stereo IR | Active & Passive Stereo | Active & Passive Stereo | Active & Passive Stereo | Active & Passive Stereo |
| Baseline | 50mm | 50mm | 100mm | 95mm | 95mm | 95mm | 95mm |
| Interface | USB 3 | USB 3 | USB 3 | USB 3 | GMSL2 FAKRA & USB 3 | Gigabit Ethernet M12 X-coded | Gigabit Ethernet |
| UVC Compliant | Yes | Yes | Yes | Yes | Yes | N/A | N/A |
| SDK | Orbbec SDK | Orbbec SDK | Orbbec SDK | Orbbec SDK | Orbbec SDK | Orbbec SDK | Orbbec SDK V2.0 |
| Depth Range | 0.15m - 10m | 0.10m - 20m+ | 0.20m - 10m | 0.17m - 20m+ | 0.17m - 20m+ | 0.25m - 20m+ | 0.31m - 20m+ |
| Ideal Range | 0.20m - 5m | 0.26m - 3m | 0.50m - 6m | 0.25m - 6m | 0.25m - 6m | 0.25m - 6m | 0.31m - 10m |
| Depth Resolution @ Frame Rate | Up to： 1280 × 800 @ 30fps 640 x 400 @ 60fps | Up to： 1280 x 800 @ 30fps 848 x 480 @ 60fps | Up to： 1280 × 800 @ 30fps 640 x 400 @ 60fps | Up to： 1280 x 800 @ 30fps 848 x 480 @ 60fps | Up to： 1280 x 800 @ 30fps 848 x 480 @ 60fps | Up to： 1280 x 800 @ 30fps 848 x 530 @ 60fps | Up to： 1280 × 800 @ 10fps 640 x 400 @ 20fps |
| Depth FOV (H × V) | 90° x 65° ± 3° @ 2m | 90° x 65° ± 3° @ 2m | 90° x 65° ± 3° @ 2m | 90° x 65° ± 3° @ 2m | 90° × 65° ± 3° @ 2m | 90° × 65° ± 3° @ 2m | 90° × 65° ± 3° @ 2m |
| Depth FOV (H × V) with D2C | Up to: 86° x 55° ± 3° @ 2m | Up to: 86° x 55° ± 3° @ 2m | Up to: 94° x 68° ± 3° @ 2m | Up to: 94° x 68° ± 3° @ 2m | Up to: 94° x 68° ± 3° @ 2m | Up to: 94° x 68° ± 3° @ 2m | Up to: 94° x 68° ± 3° @ 2m |
| Spatial Precision | ≤2% @ 2m | ≤1.5% @ 2m | ≤2% @ 4m | ≤0.8% @ 2m ≤1.6% @ 4m | ≤0.8% @ 2m ≤1.6% @ 4m | ≤0.8% @ 2m ≤1.6% @ 4m | ≤0.4% @ 2m ≤0.8% @ 4m |
| Depth Sensor Technology | Global Shutter | Global Shutter | Global Shutter | Global Shutter | Global Shutter | Global Shutter | Global Shutter |
| Depth Filter | IR-pass | All-pass / IR-pass | IR-pass | Visible+NIR-pass / IR-pass | Visible+NIR-pass | Visible+NIR-pass | Visible+NIR-pass |
| IR Resolution @ Frame Rate | Up to： 1280 × 800 @ 30fps 640 x 400 @ 60fps | Up to： 1280 x 800 @ 30fps 848 x 480 @ 60fps | Up to： 1280 × 800 @ 30fps 640 x 400 @ 60fps | Up to： 1280 x 800 @ 30fps 848 x 480 @ 60fps | Up to： 1280 x 800 @ 30fps 848 x 480 @ 60fps | Up to： 1280 x 800 @ 30fps 848 x 530 @ 60fps | Up to： 1280 × 800 @ 10fps 640 x 400 @ 20fps |
| IR FOV (H x V) | 91° x 65° ± 3° | 91° x 65° ± 3° | 91° x 65° ± 3° | 91° x 65° ± 3° | 91° x 65° ± 3° | 91° x 65° ± 3° | 91° x 65° ± 3° |
| RGB Resolution @ Frame Rate | Up to： 1920 × 1080 @ 30fps 1280 x 720 @ 60fps | Up to： 1920 × 1080 @ 30fps 1280 x 720 @ 60fps | Up to： 1280 × 800 @ 30fps 1280 x 720 @ 60fps | Up to： 1280 × 800 @ 60fps 1280 x 720 @ 60fps | Up to： 1280 × 800 @ 60fps 1280 x 720 @ 60fps | Up to： 1280 × 800 @ 60fps 1280 x 720 @ 60fps | Up to： 1280 × 800 @ 10fps 1280 x 720 @ 20fps |
| RGB Sensor FOV (H × V) | 86° x 55° ± 3° | 86° x 55° ± 3° | 94° x 68° ± 3° | 94° x 68° ± 3° | 94° × 68° ± 3° | 94° × 68° ± 3° | 94° x 68° ± 3° |
| RGB Sensor Technology | Rolling Shutter | Rolling Shutter | Global Shutter | Global Shutter | Global Shutter | Global Shutter | Global Shutter |
| IMU | Support | Support | Support | Support | Support | Support | Support |
| Power Consumption | Average ≤ 2.0W (Peak ≤ 6.5W) | Average ≤ 3.0W (Peak ≤ 6.5W) | Average ≤ 2.5W (Peak ≤ 8.5W) | Average ≤ 3.0 W (Peak ≤ 6.0W) | GMSL2: Average ≤ 3.8W (Peak ≤ 7.5W ) USB 3: Average ≤ 3.0W (Peak ≤ 6.0W) | DC Average ≤ 4W (Peak ≤ 8.5W) PoE Average ≤ 5W (Peak ≤ 12W) | DC Average ≤ 6.5W (Peak ≤ 11W) PoE Average ≤ 8.0W (Peak ≤ 15W) |
| Power Supply | DC 5V ≥ 1.5A | DC 5V ≥ 1.5A | DC 5V ≥ 2A | DC 5V ≥ 1.5A | GMSL2: DC 12V ≥ 0.7A USB 3: DC 5V ≥ 1.5A | Power supply by DC via M8 A-coded: 9-24V ≥1A Power supply by PoE via M12 A-coded: IEEE 802.3af | Power supply by DC via M12 A-coded: 9-24V ≥2A Power supply by PoE via M12 A-coded: IEEE 802.3af |
| Multi-camera Hardware Sync | 8-pin | 8-pin | 8-pin | 8-pin | 8-pin & FAKRA-Z | M8 A-coded | M12 A-coded |
| Dimensions (W × H × D) | 90 mm x 25 mm x 30 mm | 90 mm x 25 mm x 30 mm / 90 mm x 25 mm x 30.7 mm | 124 mm x 29 mm x 26 mm | 124 mm × 29 mm × 27 mm / 124 mm × 29 mm × 27.7 mm | 124 mm × 29 mm × 36 mm | 124 mm × 29 mm × 50 mm | 138.5 mm × 40.5 mm × 70.0 mm |
| Weight | 97g ± 3g | 97g ± 3g / 99g ± 3g | 144g ± 3g | 133g ± 3g / 135g ± 3g | 164g ±3g | 220g ±3g | 520g ±3g |
| Ingress Protection Rating | IP5X | IP5X | IP5X | IP65 | IP65 | IP67 | IP67 |
| Installation | Bottom: 1 x 1/4-20 UNC Back: 2 x M3 | Bottom: 1 x 1/4-20 UNC Back: 2 x M3 | Bottom: 1 x 1/4-20 UNC Back: 2 x M4 | Bottom: 1 x 1/4-20 UNC Back: 2 x M4 | Bottom：1 x 1/4-20 UNC Back：2 x M4 | Bottom：4 x M4 Back：2 x M4 | Back：4x M4 Bottom：4x M4 Top：4x M4 |
| Ambient Temperature | 0℃ - 40℃ | -10℃ - 45℃ @ 15fps -10℃ - 40℃ @ 30 / 60fps | 0℃ - 40℃ | -10℃ - 50℃ @ 15 / 30fps -10℃ - 45℃ @ 60fps | -10℃ - 50℃ @15fps -10℃ - 45℃ @30/ 60fps | -10℃ - 50℃ @ 15fps -10℃ - 45℃ @30/60fps | -10℃ - 50℃ |
| Lifespan | 3 Years: Default Operating Mode & Operating Environment | 5 Years: Default Operating Mode & Operating Environment | 3 Years: Default Operating Mode & Operating Environment | 5 Years: Default Operating Mode & Operating Environment | 5 Years: Default Operating Mode & Operating Environmen | 5 Years: Default Operating Mode & Operating Environment |
Note: Please refer to the product page and datasheet for more information.
