Reliable Depth Sensing for Industrial and Logistics Applications
The Gemini 338Le features a built-in IR bandpass filter that effectively reduces ambient light interference. Its industrial-grade Gigabit Ethernet interface ensures robust performance for demanding industrial and logistics applications.

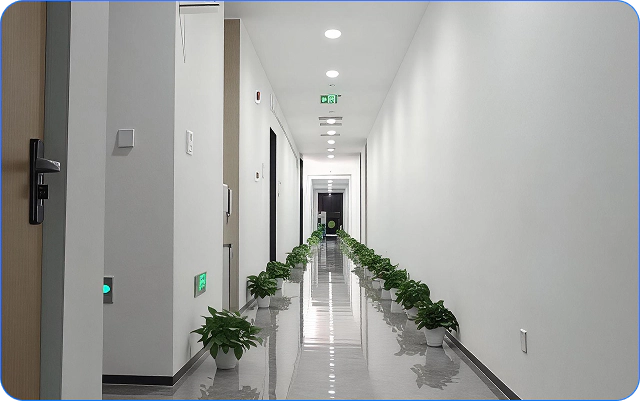

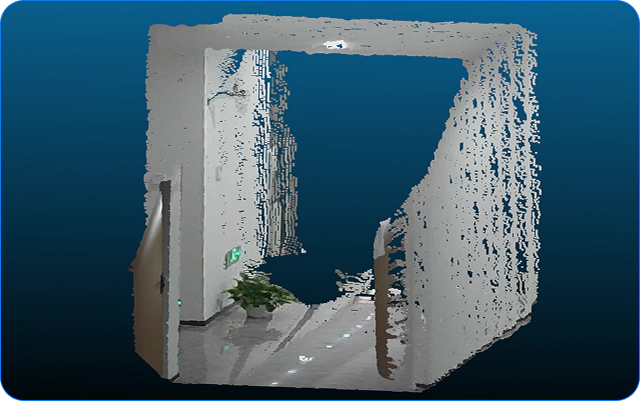

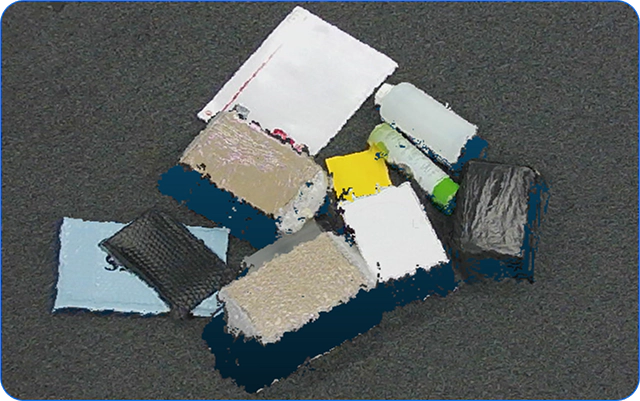

Filters Out Ambient Light Interference for Accurate Depth Output
The Gemini 338Le features an IR bandpass optical design that passes only the wavelength range of the laser illumination while rejecting out-of-band ambient light. Even in scenes with mixed bright and dark areas or strong ambient light, it consistently delivers high-quality depth images, reducing perception errors caused by changing lighting conditions and helping robots maintain reliable and efficient operation.

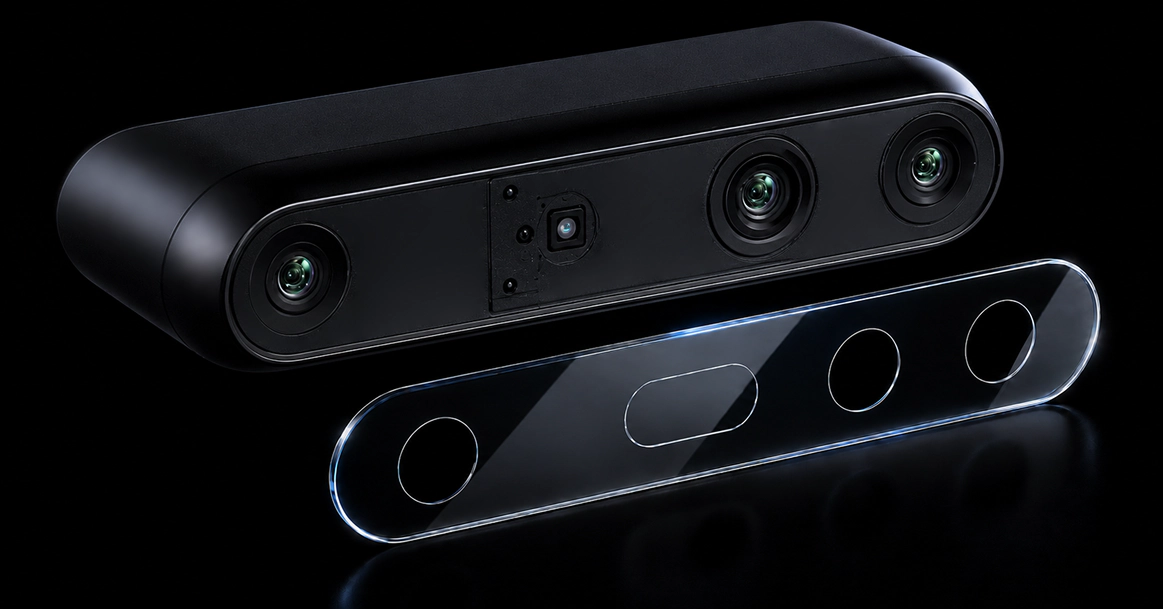

Robust Optical Design for Long-Term Reliability
The Gemini 338Le features a durable glass cover that enhances mechanical durability and protects against potential damage caused by frequent operation, routine cleaning, and maintenance.

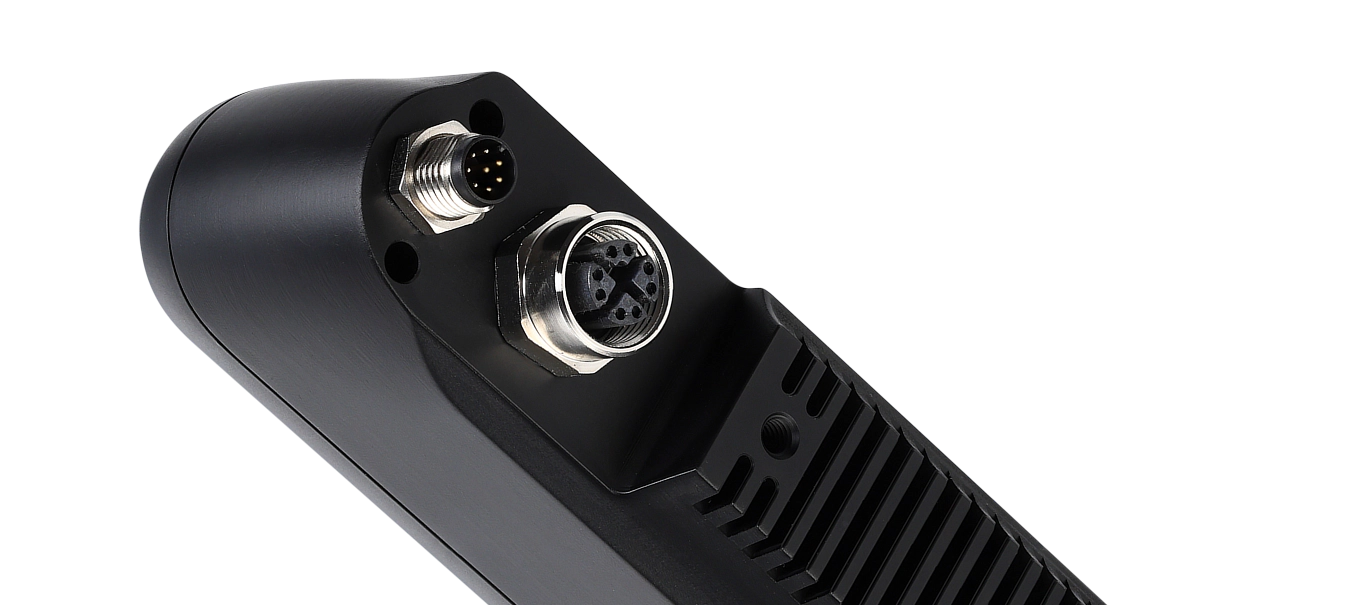

Ethernet Connectivity Enables Stable Data Transmission
The Gemini 338Le features industrial-grade Gigabit Ethernet connectivity with PoE, enabling reliable long-distance data transmission and stable power delivery for industrial and logistics applications.

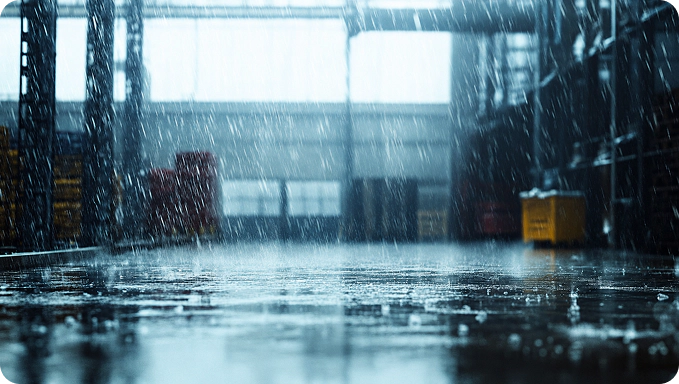

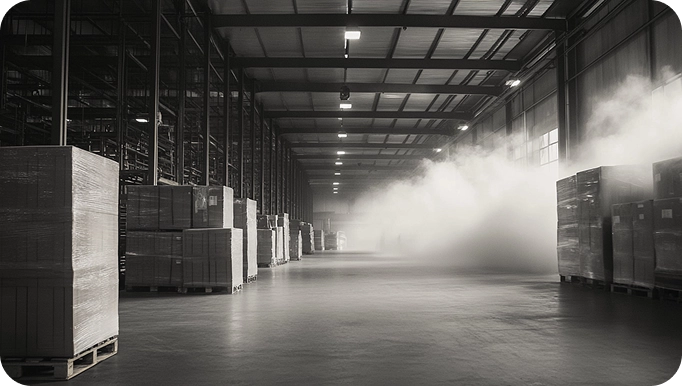

Rugged Structure Design for Challenging Environments
The Gemini 338Le features an IP67-rated enclosure, robust mechanical stability, and a wide operating temperature range of −10°C to 50°C, ensuring reliable operation in challenging conditions involving dust, rain, and continuous motion.
Typical Applications

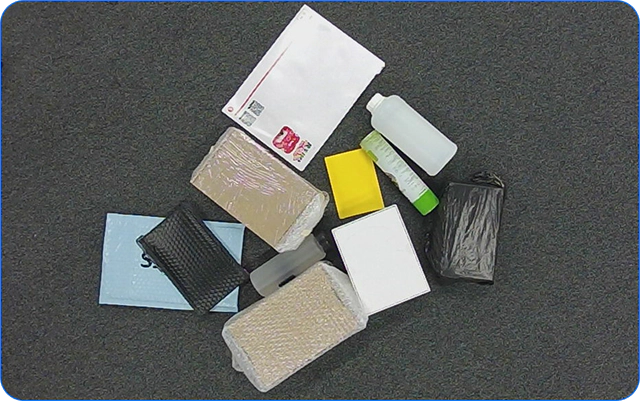

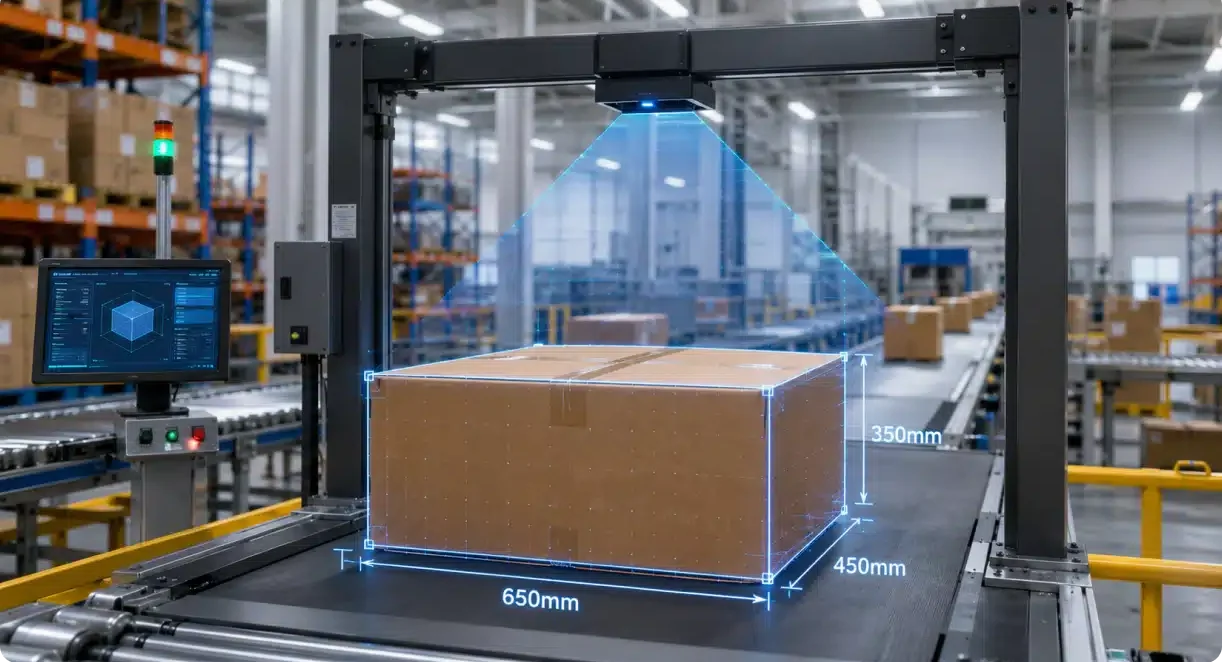

Industrial and Logistics Measurement
Reduces ambient light interference in depth imaging, enabling more consistent and accurate measurement of packages and stacked goods.

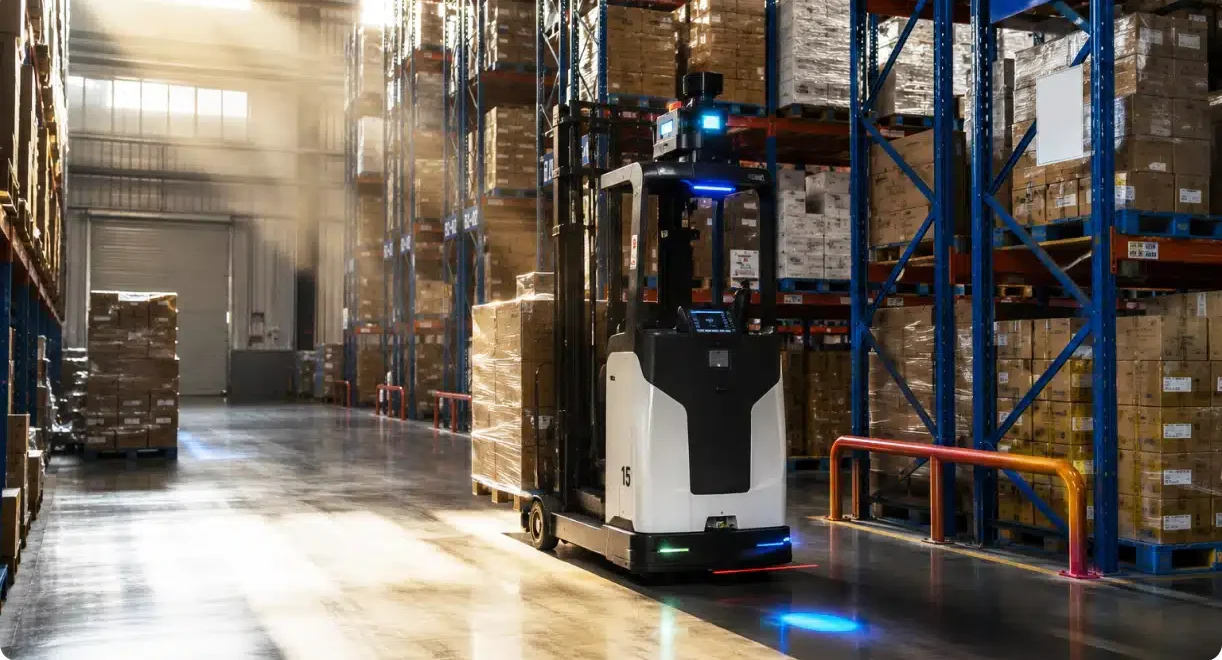

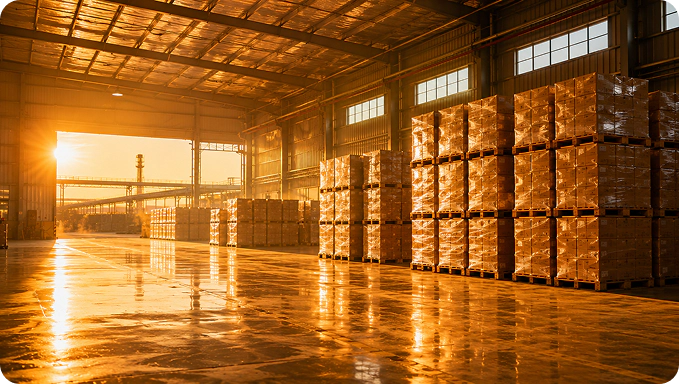

Autonomous Forklifts
Maintains high-performance depth sensing and accurate pallet measurement under complex warehouse lighting, improving reliability across loading, unloading, material handling, and measurement operations.
Accelerate Your Deployment
Ready-to-Use Industrial PoE Interface
Seamless Multi-Camera Synchronization
Online Firmware Updates
Professional Development Support
Open-source Powered, Ecosystem-ready
Open-source SDK
Support for ROS1/ROS2/NVIDIA lsaac ROS
Pre-integrated with NVIDIA Jetson AGX Orin/Orin NX/Orin Nano/AGX Xavier
Compare Gemini 335Le / 336L / 338Le Specifications
| Product Name | Gemini 335Le | Gemini 336L | Gemini 338Le | |
|---|---|---|---|---|
| Basic | Operating Environment | Indoor / Outdoor Use | ||
| Core Technology | Stereo Vision | |||
| Baseline | 95 mm | |||
| Interfaces | Gigabit Ethernet M12 X-coded | USB 3 Type-C | Gigabit Ethernet M12 X-coded | |
| UVC Compliant | N/A | Available | N/A | |
| SDK | Orbbec SDK v2 | |||
| Depth | Maximum Working Range [1] | 0.25 m – 20 m+ | 0.17 m – 20 m+ | 0.25 m – 20 m+ |
| Ideal Working Range | 0.25 m – 6 m | |||
| Resolution @ Frame Rate | Up to: 1280 × 800 @ 30 fps; 848 × 530 @ 60 fps | |||
| Depth FOV (H × V) | 90° × 65° ± 3° @ 2 m | |||
| Depth FOV (H × V) with D2C | Up to: 90° × 65° ± 3° @ 2 m | |||
| Spatial Precision [2] | ≤ 0.8% @ 2 m ≤ 1.6% @ 4 m | |||
| Shutter Type | Global Shutter | |||
| Depth Filter | Visible + NIR-pass | NIR-pass | IR bandpass | |
| IR | Resolution @ Frame Rate | Up to: 1280 × 800 @ 30 fps 848 × 530 @ 60 fps | Up to: 1280 × 800 @ 30 fps 848 × 480 @ 60 fps | Up to: 1280 × 800 @ 30 fps 848 × 530 @ 60 fps |
| IR FOV (H × V) | 91° × 65° ± 3° | |||
| RGB | Resolution @ Frame Rate | Up to: 1280 × 800 @ 60 fps; 1280 × 720 @ 60 fps | ||
| RGB FOV (H × V) | 94° × 68° ± 3° | |||
| Shutter Type | Global Shutter | |||
| Built-in Sensor | IMU | Equipped | ||
| Electrical | Average Power Consumption | DC ≤ 4 W (Peak ≤ 8.5 W) PoE ≤ 5 W (Peak ≤ 12 W) | ≤ 3 W | DC ≤ 4 W (Peak ≤ 8.5 W) PoE ≤ 5 W (Peak ≤ 12 W) |
| Power Supply | DC: 9–24 V ≥ 1 A PoE: IEEE 802.3af | DC 5 V ≥ 1.5 A | DC: 9–24 V ≥ 1 A PoE: IEEE 802.3af | |
| Physical | Multi-Camera Hardware Sync | M8 A-coded | 8-pin | M8 A-coded |
| Dimensions (W × H × D) | 124 mm × 29 mm × 50 mm | 124 mm × 29 mm × 27 mm | 124 mm × 29 mm × 50 mm | |
| Weight | 220 g ± 3 g | 135 g ± 3 g | 220 g ± 3 g | |
| Ingress Protection Rating [3] | IP67 | IP65 | IP67 | |
| Installation | Bottom: 4 × M4 or 1 × 1/4-20 UNC Back: 2 × M4 | Bottom: 1 × 1/4-20 UNC Back: 2 × M4 | Bottom: 4 × M4 or 1 × 1/4-20 UNC Back: 2 × M4 | |
| Working Environment | Ambient Temperature | −10°C to 50°C @ 15 fps −10°C to 45°C @ 30/60 fps | ||
| EMC Requirement | EN 61000-6-2 EN 61000-6-4 | EN 55032:2015+A1:2020 EN 55032:2017+A11:2020 | EN 61000-6-2 EN 61000-6-4 | |
| Vibration | 5 Grms @ 5–500 Hz Random, 4 hr/axis | 3.8 Grms @ 5–500 Hz Random, 2 hr/axis | 5 Grms @ 5–500 Hz Random, 4 hr/axis | |
| Others | Lifespan [4] | 5 Years: Default Operating Mode & Operating Environment | ||
[1] Theoretical maximum depth range up to 65 meters;
[2] Data measured during factory calibration；
[3] To achieve the camera’s specified IP rating, cables with a matching IP rating must be used；
[4] No more than 16h working per day.
Get Started with Gemini 338Le
Related Orbbec 3D Camera Solutions
Gemini 330 Series
Stereo Vision 3D Camera
Frequently Asked Questions
Both products have similar depth sensing capabilities. The main differences are their interface architecture and deployment scenarios.
Gemini 338Le: Gigabit Ethernet + PoE, IP67. It is more suitable for fixed industrial deployments, such as humanoid robots, AMRs/AGVs, industrial inspection equipment, and fixed automation systems. For industrial measurement and fixed-position applications, Ethernet is preferred.
Gemini 338Lg: GMSL2 + FAKRA-Z, IP65. It is more suitable for integrated robot platforms, such as humanoid robots, mobile robots, and robotic arms. The GMSL2 architecture provides better stability for embedded robot systems. For dynamic mobile robots and robot platforms, 338Lg is preferred.
Gemini 338Le further improves environmental robustness based on Gemini 336/336L. It features enhanced optical design to reduce interference from ambient light and provide better depth performance in complex lighting conditions. Gemini 338Le also adopts improved industrial interfaces and structural reliability, making it more suitable for demanding industrial environments.
The maximum working range of Gemini 338Le is 0.25–20 m+. The recommended working distance is approximately 0.25–6 m, suitable for applications such as mobile robots, humanoid robots, and industrial close-range 3D perception tasks.
The 65 m range refers to the theoretical maximum detection distance under specific conditions and does not represent the recommended working distance. Actual effective distance is affected by environmental lighting, target reflectivity, exposure settings, and other factors.
Gemini 338Le supports a maximum depth resolution of 1280 × 800 at 30 fps and 848 × 530 at 60 fps.
Gemini 338Le uses Gigabit Ethernet with an M12 X-coded connector.
No. The 16-hour/day, 5-year service life represents the typical usage conditions considered during product design and is not a strict limitation on daily operating hours. Actual service life may vary depending on operating duration, workload, and environmental conditions.
